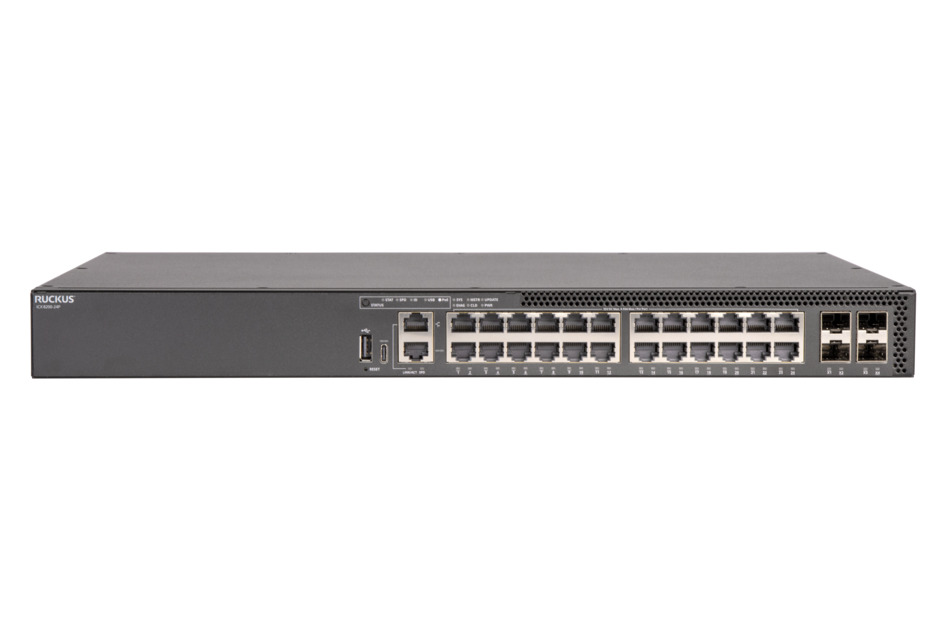

RUCKUS ICX 8200-24P

Base Product: ICX8200

Entry-Level+ Access 24 Ports 1G PoE Switch

Specifications for RUCKUS ICX 8200-24P

Regionale Verfügbarkeit Asien | Australien/Neuseeland | EMEA | Lateinamerika | Nordamerika
Produktart Ethernet-Switch
Produktmarke RUCKUS®
Switching Capacity, maximum 248 Gb/s
1 GbE RJ45 Ports, quantity, maximum 24
1 GbE SFP Ports, quantity, maximum 4
10 GbE SFP+ Ports, quantity, maximum 4
25 GbE SFP28 Ports, quantity, maximum 4
PoE Power Budget, maximum 370 W
Switches per Stack, maximum 12
Aggregate Stack Bandwidth, maximum 1200 Gb/s
PoE/PoE+ Ja
Stacking Ja
sFlow Ja
Layer 3 (STATIC, RIP, OSPF) Ja
OpenFlow with Hybrid Port Mode Ja
Campus Fabric Technology Nein
Redundant Power Option Nein
Hot Swap Internal Power Supplies & Fans Nein
802.3bt2 (90 W PoE Power per Port) Nein
VRF Ja
EEE (Energy Efficient Ethernet) Ja
IPsec VPN, with service module Nein
MACsec Nein
BGP Nein
Reversible Airflow Option Nein
VXLAN Ja
Multi Chassis Trunking (MCT) Nein
Organisation Klassifikation
ROHS Konform/Ausgenommen
CHINA-ROHS Über dem maximalen Konzentrationswert
UK-ROHS Konform/Ausgenommen
