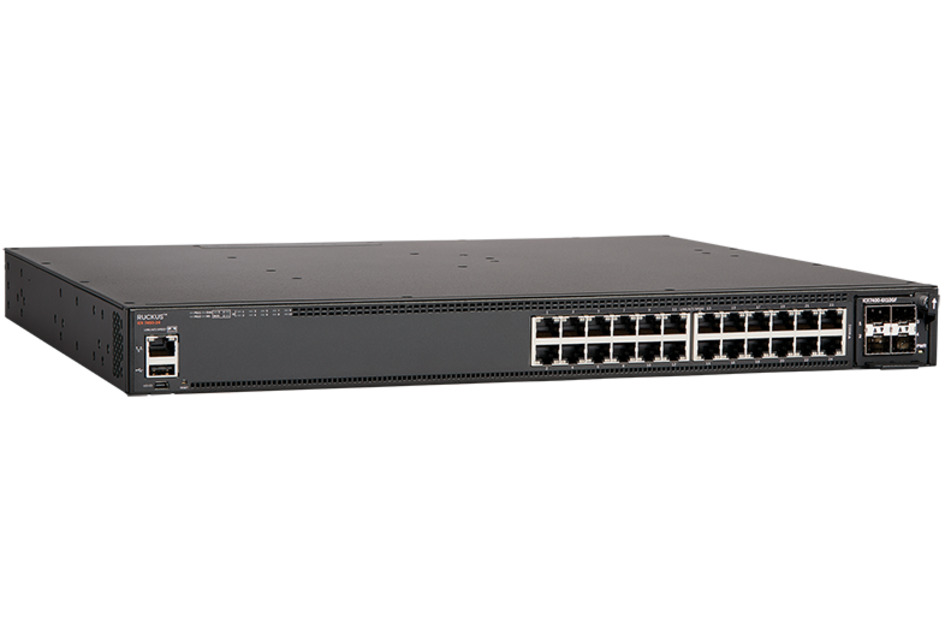

RUCKUS ICX 7450-24

Base Product: ICX7450

Mid-Range Access 24 Ports 1G Switch

Specifications for RUCKUS ICX 7450-24

ICX7450-24 | RUCKUS ICX 7450-24 [icx7450-24_right]
Regionale Verfügbarkeit Asien | Australien/Neuseeland | EMEA | Lateinamerika | Nordamerika
Produktart Ethernet-Switch
Produktmarke RUCKUS®
Switching Capacity, maximum 288 Gb/s
1 GbE RJ45 Ports, quantity, maximum 24
1 GbE SFP Ports, quantity, maximum 4
10 GbE SFP+ Ports, quantity, maximum 12
10 GbE RJ45 Ports, quantity, maximum 12
40 GbE QSFP Ports, quantity, maximum 3
Switches per Stack, maximum 12
Aggregate Stack Bandwidth, maximum 960 Gb/s
PoE/PoE+ Nein
Stacking Ja
sFlow Ja
Layer 3 (STATIC, RIP, OSPF) Ja
OpenFlow with Hybrid Port Mode Ja
Campus Fabric Technology Ja
Redundant Power Option Ja
Hot Swap Internal Power Supplies & Fans Ja
802.3bt2 (90 W PoE Power per Port) Nein
VRF Ja
EEE (Energy Efficient Ethernet) Ja
IPsec VPN, with service module Ja
MACsec Ja
BGP Ja
Reversible Airflow Option Ja
VXLAN Nein
Multi Chassis Trunking (MCT) Nein
Organisation Klassifikation
ROHS Konform/Ausgenommen
CHINA-ROHS Über dem maximalen Konzentrationswert
UK-ROHS Konform/Ausgenommen
