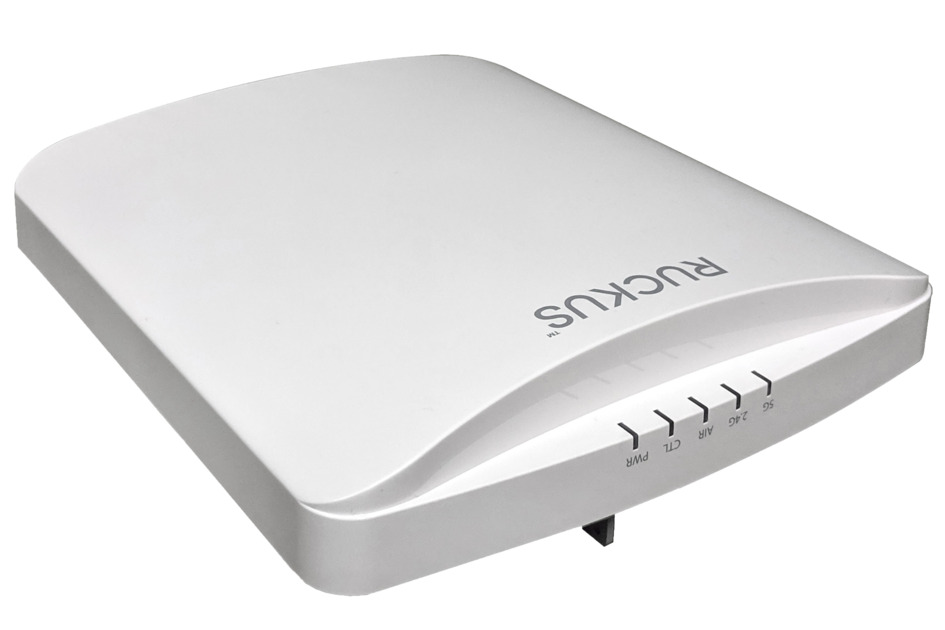

RUCKUS R750 Indoor Access Point Features
The R750 is based on the latest Wi-Fi 6 standard and bridges the performance gap from ‘gigabit’ Wi-Fi to ‘multi-gigabit’ Wi-Fi in support of the insatiable demand for better and faster Wi-Fi. The R750 is the first ever Wi-Fi 6 AP to be granted Wi-Fi CERTIFIED 6 status by the Wi-Fi Alliance. As part of Wi-Fi Alliance's testbed, the R750 validates other devices for Wi-Fi CERTIFIED 6 interoperability certification.
The R750 makes it easy to deliver reliable, secure, high-performance connectivity in transit hubs, auditoriums, conference centers and other high traffic indoor spaces.
The RUCKUS R750 is our high-end dual-band, dual-concurrent Wi-Fi 6 AP that supports 8 spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz). The R750, with OFDMA and MU-MIMO capabilities, efficiently manages up to 1024 client connections with increased capacity, improved coverage and performance in ultra-high dense environments.
Also, wireless requirements within enterprises are expanding beyond Wi-Fi with Bluetooth® Low Energy, Zigbee and many other non-Wi-Fi wireless technologies. Enterprises need a unified platform to eliminate network silos. The RUCKUS AP portfolio is equipped to solve these challenges through wireless convergence.
The R750 is also easy to manage through RUCKUS physical and virtual cloud management options.
The R750 makes it easy to deliver reliable, secure, high-performance connectivity in transit hubs, auditoriums, conference centers and other high traffic indoor spaces.
The RUCKUS R750 is our high-end dual-band, dual-concurrent Wi-Fi 6 AP that supports 8 spatial streams (4x4:4 in 5GHz, 4x4:4 in 2.4GHz). The R750, with OFDMA and MU-MIMO capabilities, efficiently manages up to 1024 client connections with increased capacity, improved coverage and performance in ultra-high dense environments.
Also, wireless requirements within enterprises are expanding beyond Wi-Fi with Bluetooth® Low Energy, Zigbee and many other non-Wi-Fi wireless technologies. Enterprises need a unified platform to eliminate network silos. The RUCKUS AP portfolio is equipped to solve these challenges through wireless convergence.
The R750 is also easy to manage through RUCKUS physical and virtual cloud management options.
Specifications for RUCKUS R750 Indoor Access Point
Produktklassifizierung
Regionale Verfügbarkeit | Asien | Australien/Neuseeland | EMEA | Lateinamerika | Nordamerika |
Produktart | Access Points für den Innenbereich |
Produktmarke | RUCKUS® |
Allgemeine Spezifikationen
Antenna Patterns, per band | 4000+ |
Antenna Gain | Up to 3 dBi |
BeamFlex | Ja |
ChannelFly | Ja |
Gleichzeitige Nutzer | 1024 |
Controller Support | RUCKUS SmartZone | RUCKUS Unleashed™ | RUCKUS ZoneDirector | Standalone |
Ethernet-Ports | 1 x 1 GbE | 1 x 2,5 GigE |
IoT Support | IoT Onboard |
Anzahl der Geräte | Dual-Radio |
PD-MRC | Ja |
PHY Rate at 2,4 GHz, maximum | 1148 Mbit/s |
PHY Rate at 5 GHz, maximum | 2400 Mbit/s |
Combined Max PHY Rate | 3548 Mbit/s |
Funkketten und -ströme | 4x4:4 |
Rx Sensitivity at 2,4 GHz | -102 dBm |
Rx Sensitivity at 5 GHz | -102 dBm |
SmartMesh | Ja |
USB | USB 2,0 |
Standorttyp | Bildungswesen | Hospitality | Büro Einzelhandel | Öffentlicher Standort |
Standort-Unterart | Cafeteria/Mehrzweckraum | Bibliothek | Lobby/Gemeinschaftsbereiche | Tagungsräume | Einrichtung/Veranstaltungsort: VIP-Räume |
Unterstützte Wi-Fi-Bands | 2,4 GHz | 5 GHz |
Wi-Fi-Generierung | Wi-Fi 6 |
Wi-Fi-Standardschnittstelle | IEEE 802.11a/b/g/n/ac/ax |
Umweltspezifikationen
Betriebstemperatur | 0 °C to +50 °C (+32 °F to +122 °F) |
