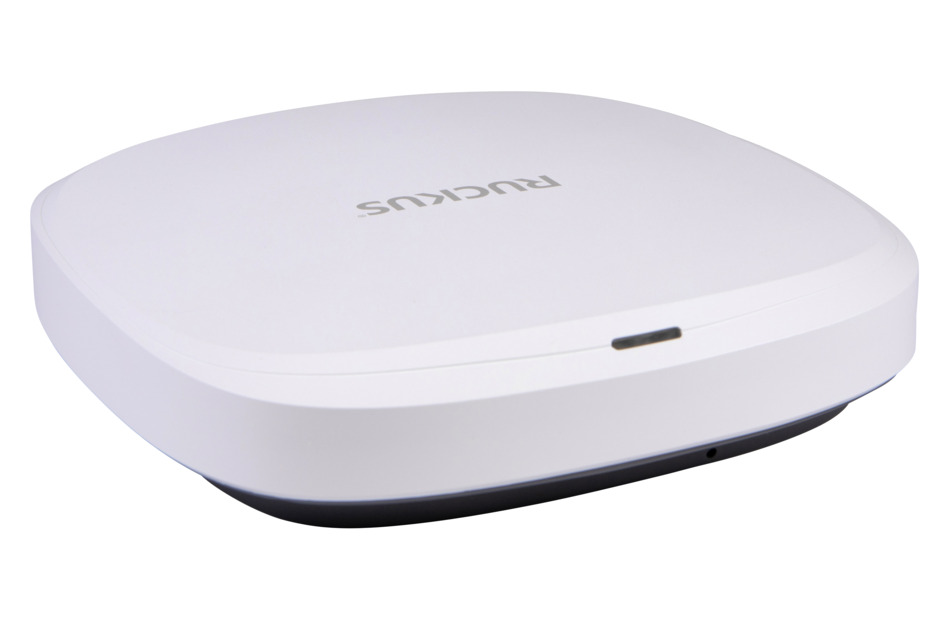

RUCKUS R670 Indoor Access Point

High-Performance Wi-Fi 7 2x2:2 Indoor Access Point with 9,3 Gbps max rate and Embedded IoT

RUCKUS R670 Indoor Access Point Features

The R670 expands the reach of Wi-Fi 7 and addresses the needs of every day deployments, in guest rooms, classrooms, hotel rooms and lobby. It supports data intensive streaming like 4K/8K video transmissions, while latency voice and data with stringent quality-of-service requirements.
The RUCKUS R670 is a high-performance Wi-Fi 7, tri-band concurrent indoor AP that delivers 6 spatial streams (2x2:2 in 2.4GHz, 5GHz and 6GHz or 2x2:2 in 2.4GHz and 4x4:4 in 5GHz in dual band mode) It delivers industry-leading performance environments with a combined data rate of 9,34 Gbps.
Furthermore, a 5 Gbps Ethernet port eliminates wired backhaul for full use of available Wi-Fi capacity. Wireless requirements within enterprises are expanding beyond Wi-Fi. The R670 has one built-in IoT radio offering onboard BLE or Zigbee The R670 is a converged access point that allows customers to seamlessly integrate any new wireless technologies with the USB port.

Specifications for RUCKUS R670 Indoor Access Point

R670 | RUCKUS R670 Indoor Access Point [RUCKUS R670 - 0L5A0869]
Regionale Verfügbarkeit Asien | Australien/Neuseeland | EMEA | Lateinamerika | Nordamerika
Produktart Access Points für den Innenbereich
Produktmarke RUCKUS®
Antenna Patterns, per band 4000+
Antenna Gain Up to 4 dBi
BeamFlex Ja
ChannelFly Ja
Gleichzeitige Nutzer 768
Controller Support RUCKUS One™ | RUCKUS SmartZone | RUCKUS Unleashed™
Ethernet-Ports 1 x 1 / 2,5 / 5 GbE | 1 x 1 GbE
IoT Support IoT Onboard
Anzahl der Geräte Tri-Radio
PD-MRC Ja
PHY Rate at 2,4 GHz, maximum 689 Mbit/s
PHY Rate at 5 GHz, maximum 5765 Mbit/s
PHY Rate at 6 GHz, maximum 5765 Mbit/s
Combined Max PHY Rate 9340 Mbit/s
Funkketten und -ströme 2x2:2
Rx Sensitivity at 2,4 GHz -97 dBm
Rx Sensitivity at 5 GHz -100 dBm
Rx Sensitivity at 6 GHz -96 dBm
SmartMesh Ja
USB USB 2,0
Standorttyp Bildungswesen | Hospitality | Büro Einzelhandel | Öffentlicher Standort
Standort-Unterart Kongresshalle | Hörsaal | Transitstationen | Einrichtung/Veranstaltungsort: öffentliche Bereiche
Unterstützte Wi-Fi-Bands 2,4 GHz | 5 GHz | 6 GHz
Wi-Fi-Generierung Wi-Fi 7
Wi-Fi-Standardschnittstelle IEEE 802.11a/b/g/n/ac/ax/be
Betriebstemperatur 0 °C to +50 °C (+32 °F to +122 °F)
