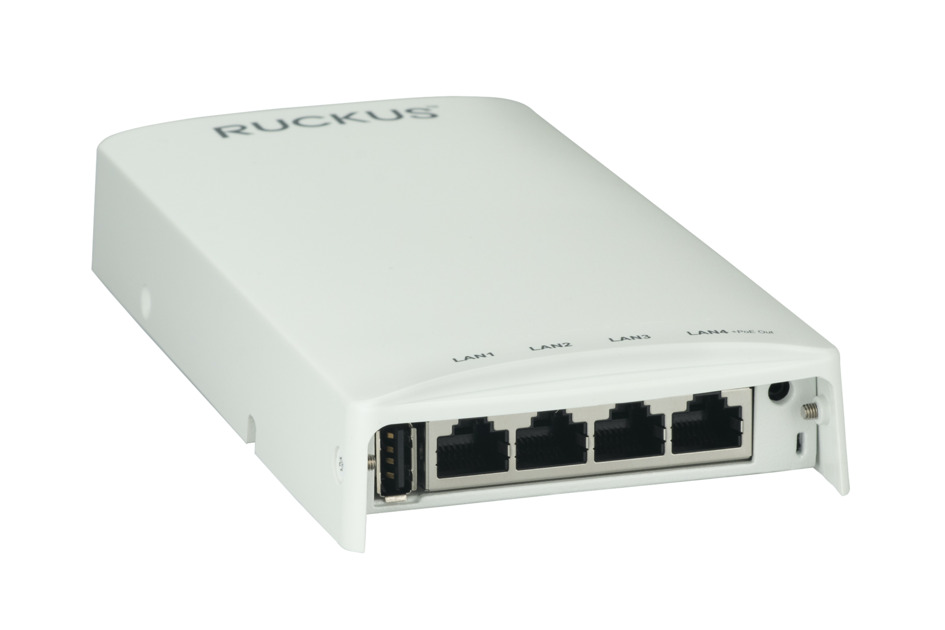

RUCKUS H550 Indoor Access Point Features
In hotels, apartment buildings, and other multi-dwelling structures, wireless connectivity can carry a hefty price tag. You need to connect a wide range of wired devices - IPTV set-top boxes, IP phones, networked minibars - IoT devices like smart locks and sensors - while delivering a great wireless experience for guests.
The RUCKUS H550 wall-mounted access point, IoT gateway and Ethernet switch makes it easy to support the most demanding in-room connectivity requirements. It starts with RUCKUS patented Wi-Fi optimization intelligence to deliver the industry's highest-performing wireless connectivity. Combine that with four-ports of Gigabit Ethernet to connect multiple in-room wired devices, without extra cabling and add supports for Zigbee® and Bluetooth® Low Energy, as well as other protocols via optional USB modules. Put it all in a sleek low-profile design that can be discretely installed over a standard electrical outlet.
Deliver the full range of in-room services while dramatically reducing cabling, installation time, and construction costs.
The RUCKUS H550 wall-mounted access point, IoT gateway and Ethernet switch makes it easy to support the most demanding in-room connectivity requirements. It starts with RUCKUS patented Wi-Fi optimization intelligence to deliver the industry's highest-performing wireless connectivity. Combine that with four-ports of Gigabit Ethernet to connect multiple in-room wired devices, without extra cabling and add supports for Zigbee® and Bluetooth® Low Energy, as well as other protocols via optional USB modules. Put it all in a sleek low-profile design that can be discretely installed over a standard electrical outlet.
Deliver the full range of in-room services while dramatically reducing cabling, installation time, and construction costs.
Specifications for RUCKUS H550 Indoor Access Point
Produktklassifizierung
Regionale Verfügbarkeit | Asien | Australien/Neuseeland | EMEA | Lateinamerika | Nordamerika |
Produktart | Access Points für den Innenbereich |
Produktmarke | RUCKUS® |
Allgemeine Spezifikationen
Antenna Patterns, per band | 16 |
Antenna Gain | Up to 1 dBi |
BeamFlex | Ja |
ChannelFly | Ja |
Gleichzeitige Nutzer | 512 |
Controller Support | RUCKUS Cloud™ | RUCKUS SmartZone | RUCKUS Unleashed™ | RUCKUS ZoneDirector |
Ethernet-Ports | 5 x 1 GbE |
IoT Support | IoT Onboard (dual-concurrent) |
Anzahl der Geräte | Dual-Radio |
PD-MRC | Ja |
PHY Rate at 2,4 GHz, maximum | 574 Mbit/s |
PHY Rate at 5 GHz, maximum | 1200 Mbit/s |
Combined Max PHY Rate | 1774 Mbit/s |
Funkketten und -ströme | 2x2:2 |
Rx Sensitivity at 2,4 GHz | -100 dBm |
Rx Sensitivity at 5 GHz | -100 dBm |
SmartMesh | Ja |
USB | USB 2,0 |
Standorttyp | Bildungswesen | Hospitality |
Standort-Unterart | Gastzimmer | Studentenwohnheim |
Unterstützte Wi-Fi-Bands | 2,4 GHz | 5 GHz |
Wi-Fi-Generierung | Wi-Fi 6 |
Wi-Fi-Standardschnittstelle | IEEE 802.11a/b/g/n/ac/ax |
Umweltspezifikationen
Betriebstemperatur | 0 °C to +40 °C (+32 °F to +104 °F) |
