RUCKUS ICX 7150-24P

Base Product: ICX7150

Entry-Level Access 24 Ports 1G PoE Switch

Specifications for RUCKUS ICX 7150-24P

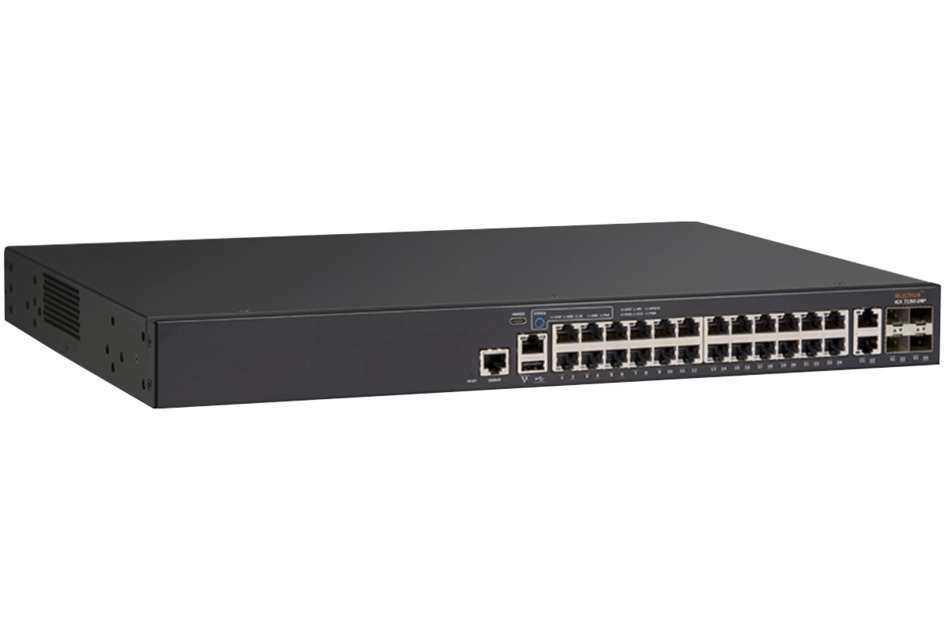

ICX7150-24P | RUCKUS ICX 7150-24P [icx7150-24p_right]
Regionale Verfügbarkeit Asien | Australien/Neuseeland | EMEA | Lateinamerika | Nordamerika
Produktart Ethernet-Switch
Produktmarke RUCKUS®
Switching Capacity, maximum 132 Gb/s
1 GbE RJ45 Ports, quantity, maximum 24 + 2
1 GbE SFP Ports, quantity, maximum 4
10 GbE SFP+ Ports, quantity, maximum 4
PoE Power Budget, maximum 370 W
Switches per Stack, maximum 12
Aggregate Stack Bandwidth, maximum 480 Gb/s
PoE/PoE+ Ja
Stacking Ja
sFlow Ja
Layer 3 (STATIC, RIP, OSPF) Ja
OpenFlow with Hybrid Port Mode Ja
Campus Fabric Technology Ja
Redundant Power Option Nein
Hot Swap Internal Power Supplies & Fans Nein
802.3bt2 (90 W PoE Power per Port) Nein
VRF Nein
EEE (Energy Efficient Ethernet) Ja
IPsec VPN, with service module Nein
MACsec Nein
BGP Nein
Reversible Airflow Option Nein
VXLAN Nein
Multi Chassis Trunking (MCT) Nein
