RUCKUS ICX 8100 Schalter

Base Product

Entry-Level Enterprise-Class L2 Access Switch

Configure Product Variants

RUCKUS ICX 8100 Switches Features

Enterprise-Class Connectivity with Cost Effective Simplicity
The RUCKUS ICX 8100 is designed to deliver enterprise-class connectivity to businesses of any size without additional complexity or cost. Whether you're managing a hotel, multi-dwelling residential property, or an educational institution, this family of switches provides the reliability and scalability needed to support modern connectivity demands—without paying for features you don’t need.

Flexible AI driven, converged wired and wireless management options
With flexible management options, including on-premises controllers, AI-driven cloud-based management, command line interface (CLI), and a web-based standalone interface, IT teams of all sizes can easily configure, monitor, and optimize their network. Whether you need hands -on control or simple plug-and-play operation, the RUCKUS ICX 8100 adapts to your needs, making it an ideal solution for organizations with limited IT resources.

Reliable and efficient, fits any budget
Built for cost-conscious organizations, the RUCKUS ICX 8100 delivers enterprise-grade networking at an affordable price. Its optimized feature set ensures you’re not overpaying for unnecessary capabilities, while still offering the performance, security, and scalability required to support today’s demanding environments. Easy to deploy and manage, this switch provides the perfect balance of power, simplicity, and value—tailored to the needs of specific verticals like hospitality, multi-dwelling residential properties, and educational institutions

  • Complete range of access switches covering a wide array of deployment scenarios
  • Power next generation APs and PoE devices
  • Silent Operation, no distracting noise
  • Broad range of enterprise-class converged wired + wireless management options for maximum flexibility. Cloud based, On premises appliance or controllerless.

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product VariantsClear

Configure and display product variants of RUCKUS ICX 8100 Switches by selecting options

Laden…
RUCKUS ICX 8100-C16PF RUCKUS ICX 8100-C16PF
Entry-Level Access Compact 16 Ports 1G PoE Switch
RUCKUS ICX 8100-24 RUCKUS ICX 8100-24
Entry-Level Access 24 Ports 1G Switch
RUCKUS ICX 8100-24P RUCKUS ICX 8100-24P
Entry-Level Access 24 Ports 1G PoE Switch
RUCKUS ICX 8100-48 RUCKUS ICX 8100-48
Entry-Level Access 48 Ports 1G Switch

Specifications for RUCKUS ICX 8100 Switches

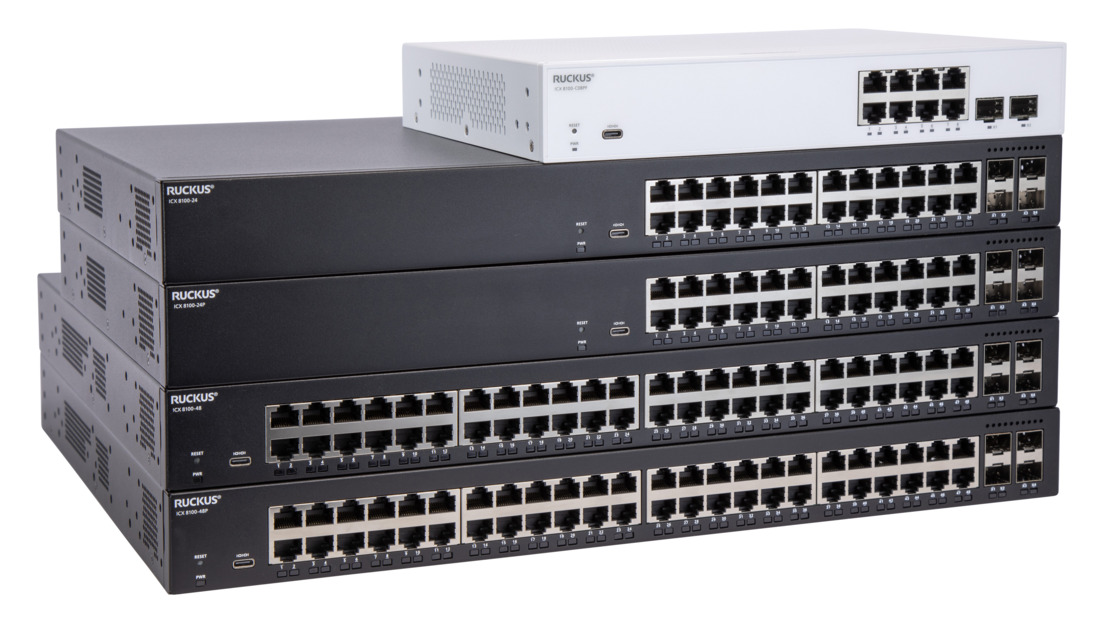

ICX8100 | RUCKUS ICX 8100 Switches [RUCKUS-ICX8100-stack-front]
Regionale Verfügbarkeit Asien | Australien/Neuseeland | EMEA | Lateinamerika | Nordamerika
Produktart Ethernet-Switch
Produktmarke RUCKUS®
Switching Capacity, maximum 176 Gb/s
1 GbE RJ45 Ports, quantity, maximum 48
1 GbE SFP Ports, quantity, maximum 4
10 GbE SFP+ Ports, quantity, maximum 4
PoE Power Budget, maximum 740 W
PoE/PoE+ Ja
Stacking Nein
sFlow Ja
Layer 3 (STATIC, RIP, OSPF) Nein
OpenFlow with Hybrid Port Mode Nein
Campus Fabric Technology Nein
Redundant Power Option Nein
Hot Swap Internal Power Supplies & Fans Nein
802.3bt2 (90 W PoE Power per Port) Nein
VRF Nein
EEE (Energy Efficient Ethernet) Ja
IPsec VPN, with service module Nein
MACsec Nein
BGP Nein
Reversible Airflow Option Nein
VXLAN Nein
Multi Chassis Trunking (MCT) Nein

Product Downloads and Links

RUCKUS ICX 8100-Schalter Datenblatt

Related Resources

Technische Publikation

RUCKUS ICX 8100 Ethernet Switch Technical Documents
RUCKUS ICX 8100 Product Documentation and Software Download on RUCKUS support website

Garantie

Beschränkte Produktgarantie von CommScope
