RUCKUS R550-Zugangspunkt für den Innenbereich
Mid-Tier Wi-Fi 6 2x2:2 Indoor Access Point with 1,8 Gbps max rate and Embedded IoT
RUCKUS R550 Indoor Access Point Features
Wi-Fi capacity requirements in classrooms, office spaces, and medium-size venues are rising due to the increase in the number of Wi-Fi connected devices. An increase in bandwidth requirements for applications and an ever-growing assortment of IoT devices puts further strain on already stretched Wi-Fi networks.
The R550 access point (AP) with the latest Wi-Fi 6 (802,11 ax) technology delivers the ideal combination of increased capacity, improved coverage and affordability in dense environments. The R550 is our mid- range dual-band, dual-concurrent AP that supports four spatial streams (2x2:2 in 2.4GHz/5GHz). The R550 supports peak data rates of up to 1774 Mbps and efficiently manages up to 512 clients connections.
The R550 access point (AP) with the latest Wi-Fi 6 (802,11 ax) technology delivers the ideal combination of increased capacity, improved coverage and affordability in dense environments. The R550 is our mid- range dual-band, dual-concurrent AP that supports four spatial streams (2x2:2 in 2.4GHz/5GHz). The R550 supports peak data rates of up to 1774 Mbps and efficiently manages up to 512 clients connections.
- Stunning Wi-Fi Performance - Mitigate interference and extend coverage with patented BeamFlex+™ adaptive antenna technology utilizing several directional antenna patterns
- Serve more devices - Connect more devices simultaneously with four MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing device performance
- Converged access point - Allow customers to eliminate siloed networks and unify Wi-Fi and IoT technologies into one single network by using built-in Bluetooth® Low Energy and Zigbee, and also expand to any future wireless technologies
- Automate Optimal Throughput - ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support
- Better Mesh Networking - Reduce expensive cabling, and complex mesh configurations by checking a box with SmartMesh wireless meshing technology to dynamically create self-forming, self-healing mesh networks
- More than Wi-Fi - Support services beyond Wi-Fi with RUCKUS IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and RUCKUS analytics
Specifications for RUCKUS R550 Indoor Access Point

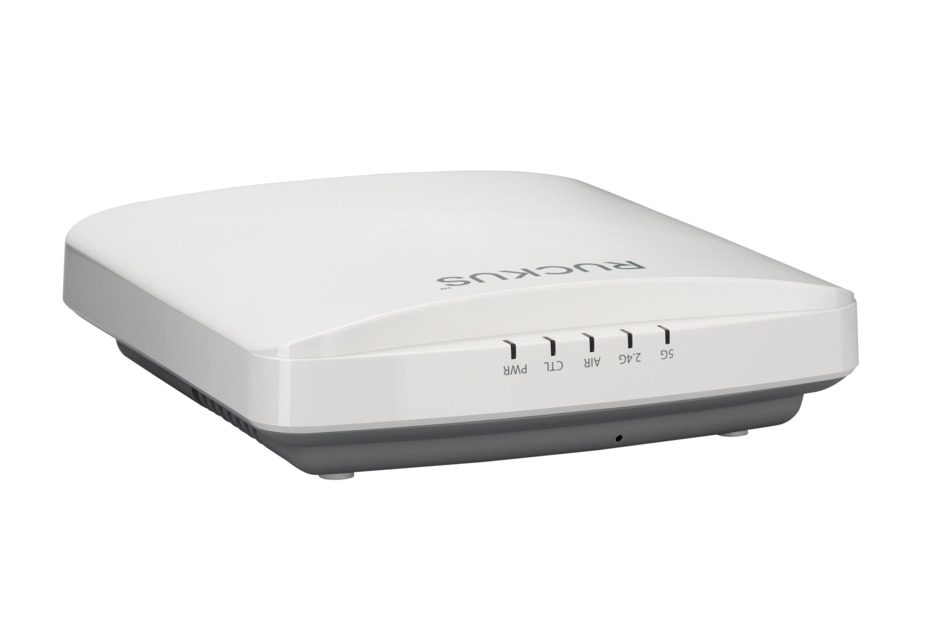

![R550 | RUCKUS R550 Indoor Access Point [R550_Top]](https://www.ruckusnetworks.com/globalassets/digizuite/966262-r550-top.png/medium?mediaformatid=50103)
Produktklassifizierung
| Regionale Verfügbarkeit | Asien | Australien/Neuseeland | EMEA | Lateinamerika | Nordamerika |
| Produktart | Access Points für den Innenbereich |
| Produktmarke | RUCKUS® |
Allgemeine Spezifikationen
| Antenna Patterns, per band | 64 |
| Antenna Gain | Up to 3 dBi |
| BeamFlex | Ja |
| ChannelFly | Ja |
| Gleichzeitige Nutzer | 512 |
| Controller Support | RUCKUS Cloud™ | RUCKUS SmartZone | RUCKUS ZoneDirector | Standalone |
| Ethernet-Ports | 2 x 1 GbE |
| IoT Support | IoT Onboard |
| Anzahl der Geräte | Dual-Radio |
| PD-MRC | Ja |
| PHY Rate at 2,4 GHz, maximum | 574 Mbit/s |
| PHY Rate at 5 GHz, maximum | 1200 Mbit/s |
| Combined Max PHY Rate | 1774 Mbit/s |
| Funkketten und -ströme | 2x2:2 |
| Rx Sensitivity at 2,4 GHz | -97 dBm |
| Rx Sensitivity at 5 GHz | -97 dBm |
| SmartMesh | Ja |
| USB | USB 2,0 |
| Standorttyp | Bildungswesen | Hospitality | Büro Einzelhandel |
| Standort-Unterart | Klassenzimmer | Flure | Büroraum |
| Unterstützte Wi-Fi-Bands | 2,4 GHz | 5 GHz |
| Wi-Fi-Generierung | Wi-Fi 6 |
| Wi-Fi-Standardschnittstelle | IEEE 802.11a/b/g/n/ac/ax |
Umweltspezifikationen
| Betriebstemperatur | 0 °C to +50 °C (+32 °F to +122 °F) |
